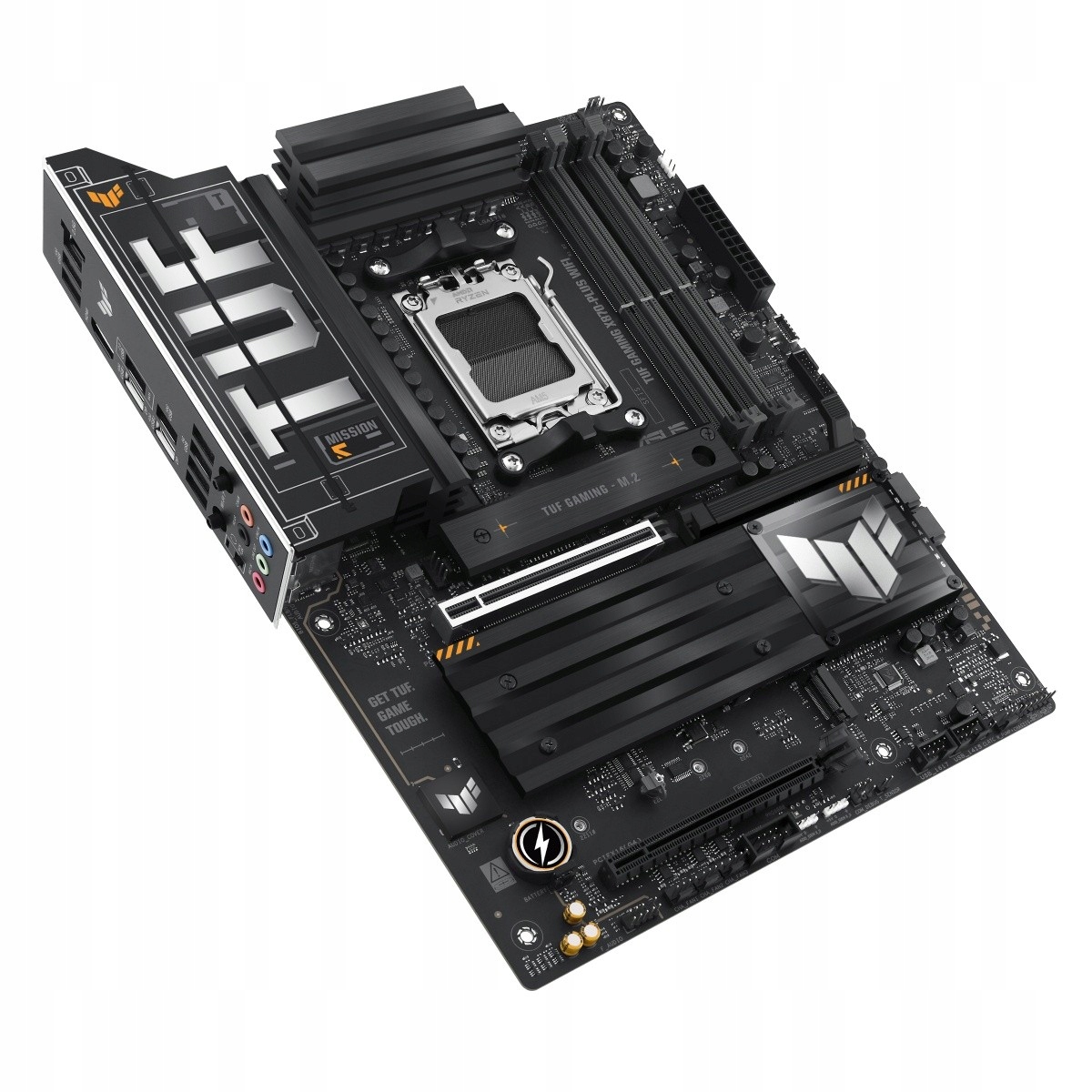

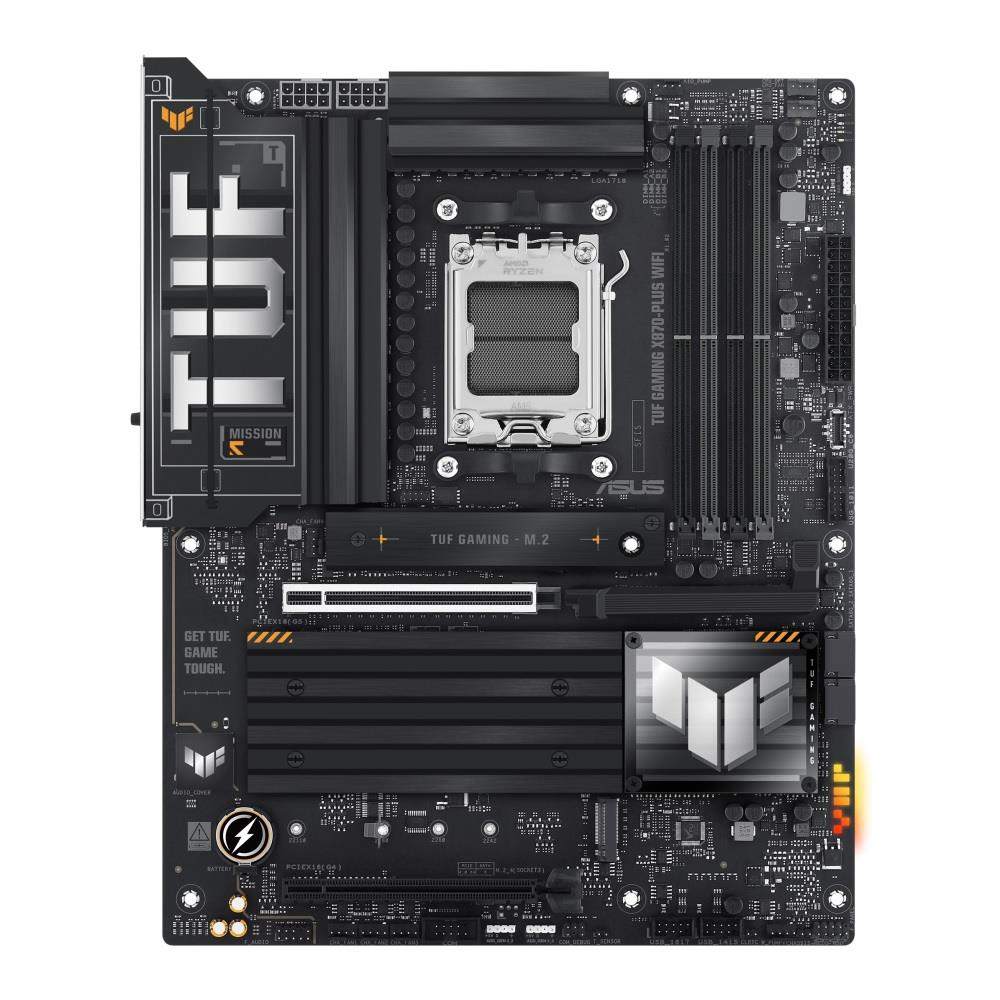

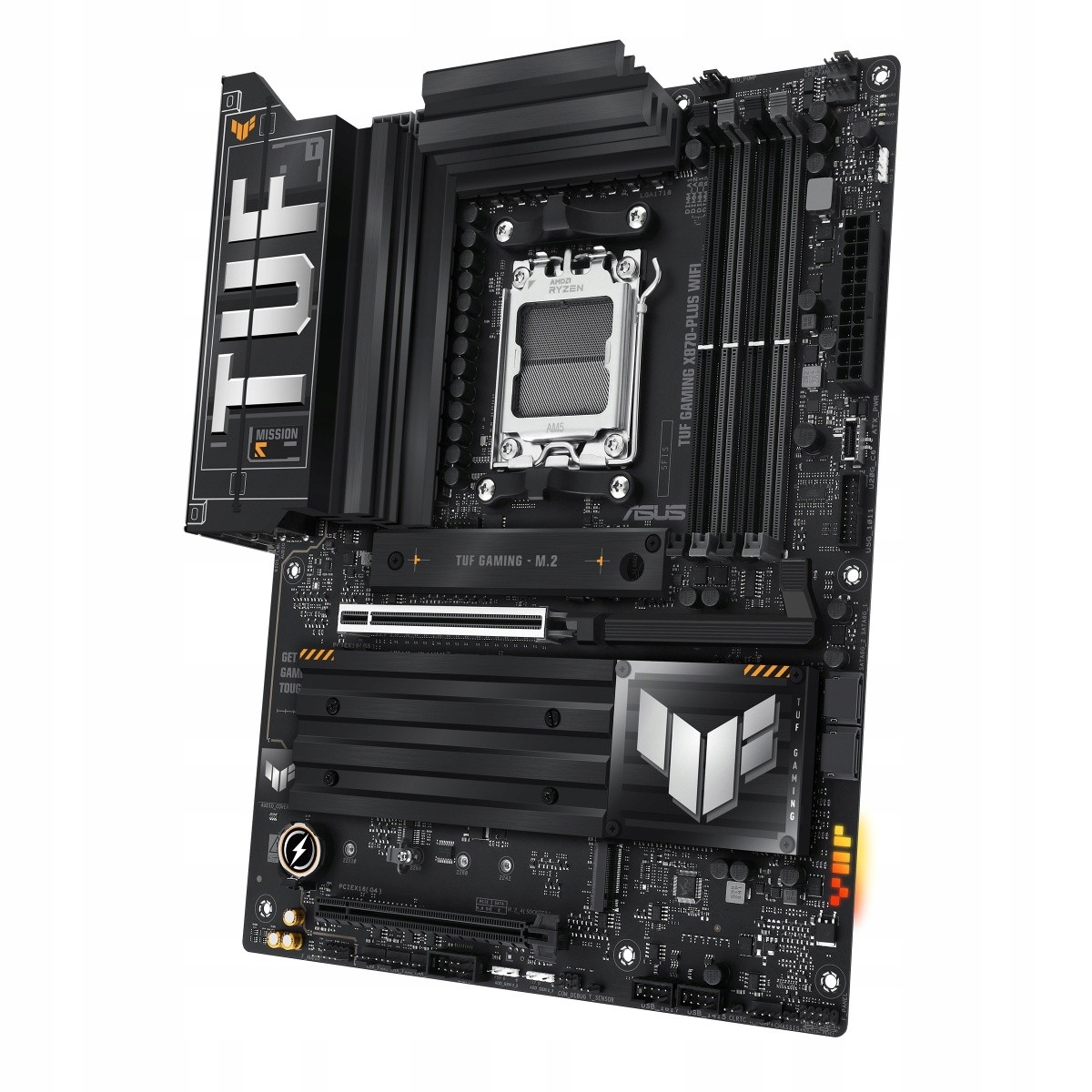

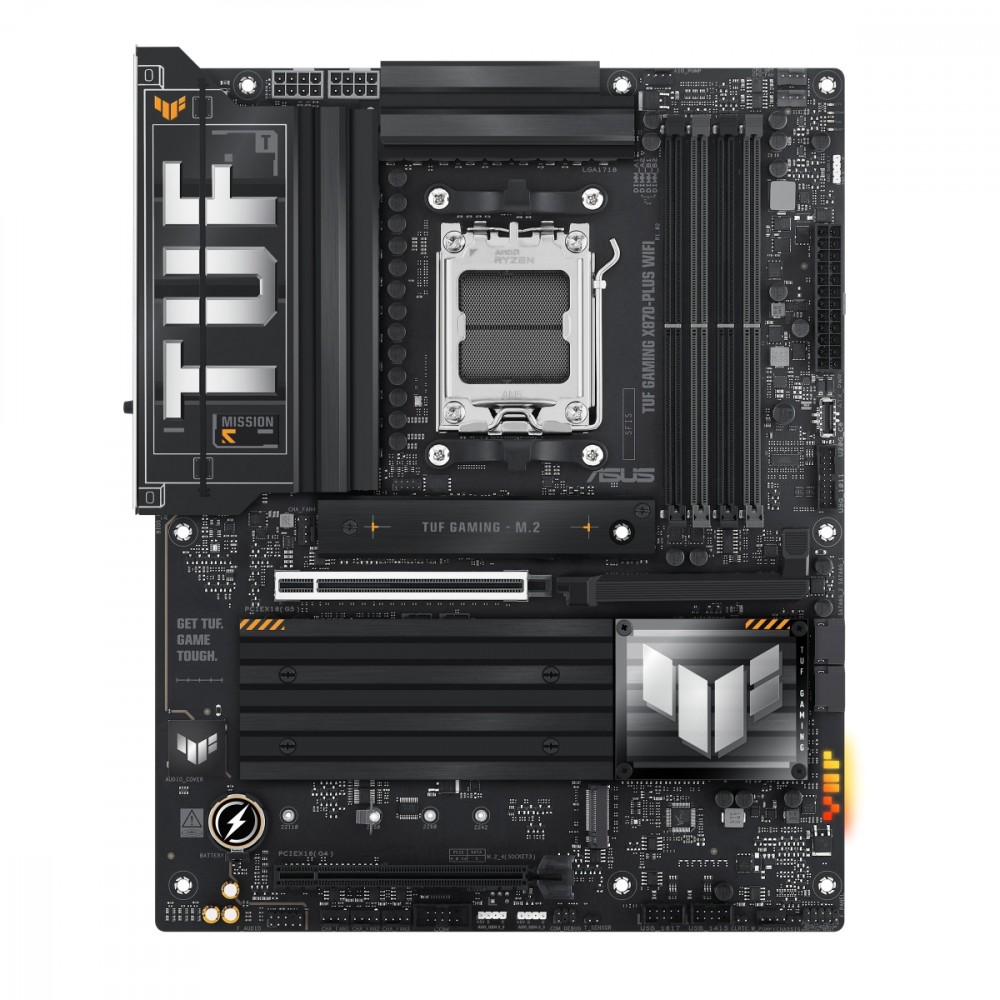

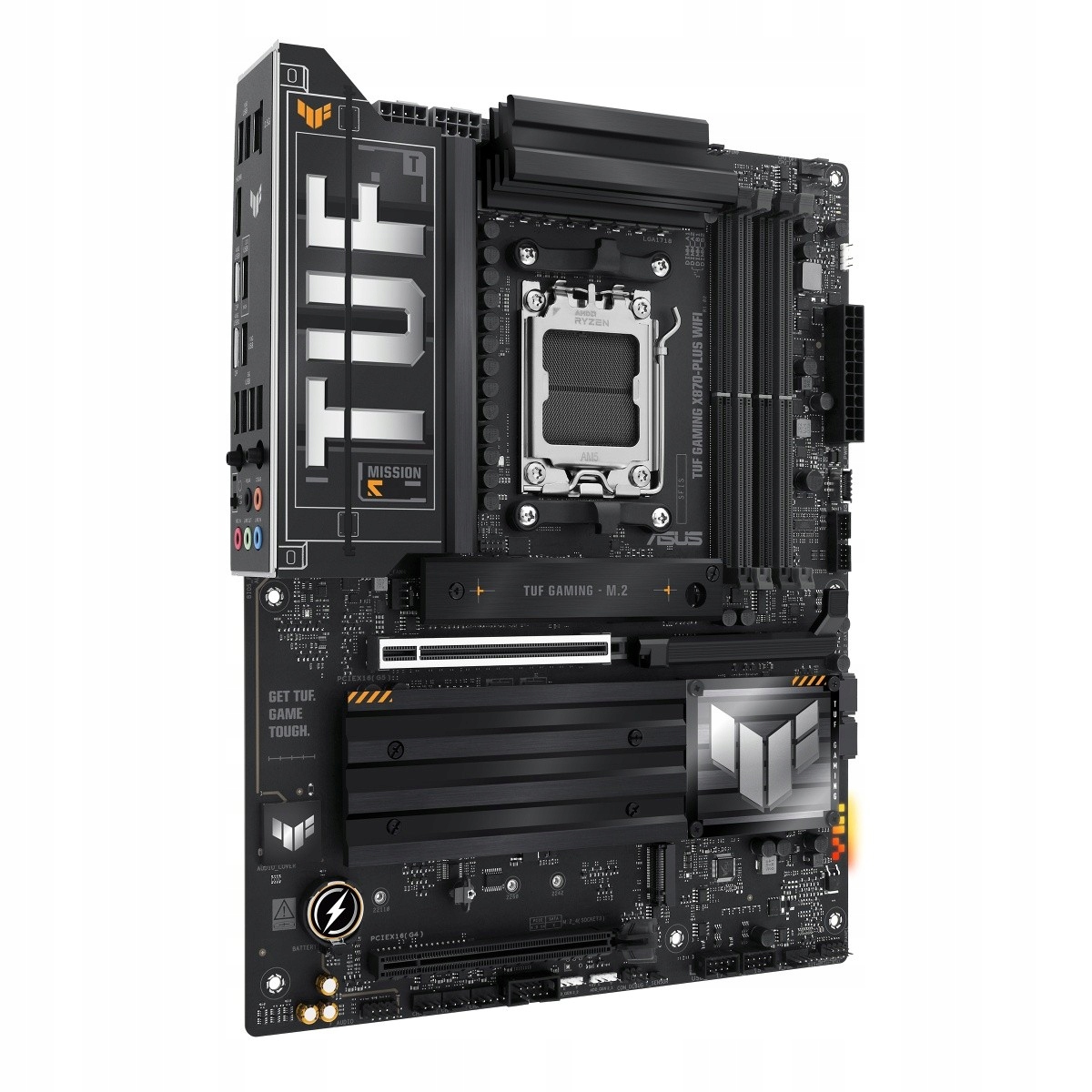

Płyta Asus TUF GAMING X870-PLUS WIFI

AMD X870 DDR5 SATA3 M.2 USB4 WiFi BT PCIe5.0 AM5 ATX

Specyfikacja:

Pamięć

• Ilość złącz pamięci DDR5: 4
• Maksymalna wielkość pamięci: 192 GB
• Tryb pracy pamięci RAM: Dual Channel
• Uwagi do pamięci RAM:
• ECC and Non-ECC, Un-buffered DIMM
• Supports AMD Extended Profiles for Overclocking (EXPO)
• ASUS Enhanced Memory Profile (AEMP)
• Adjustments will be made based on the specifications of mass-produced
• memory products available on the market
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
• Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series

Grafika

• Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
• Gniazda karty graficznej:
• HDMI
• 2x USB4 Type-C
• Uwagi do karty graficznej:
• Graphics specifications may vary between CPU types. Please refer to
• AMD CPU specifications
• Supports 4K@60Hz as specified in HDMI 2.1
• Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Dźwięk

• Zintegrowana karta dźwiękowa: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• Gniazda karty dźwiękowej:
• 5x Audio Jack
• Wewnętrzne gniazdo audio przedniego panelu
• Uwagi do karty dźwiękowej:
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for
• headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording
• input (Line-in)
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit
• Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio

Łączność / komunikacja

• Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
• Uwagi do karty sieciowej: TUF LANGuard
• Maksymalna ilość portów USB 2.0: 5
• Maksymalna ilość portów USB 3.x: 10
• Maksymalna ilość portów USB 4.0: 2

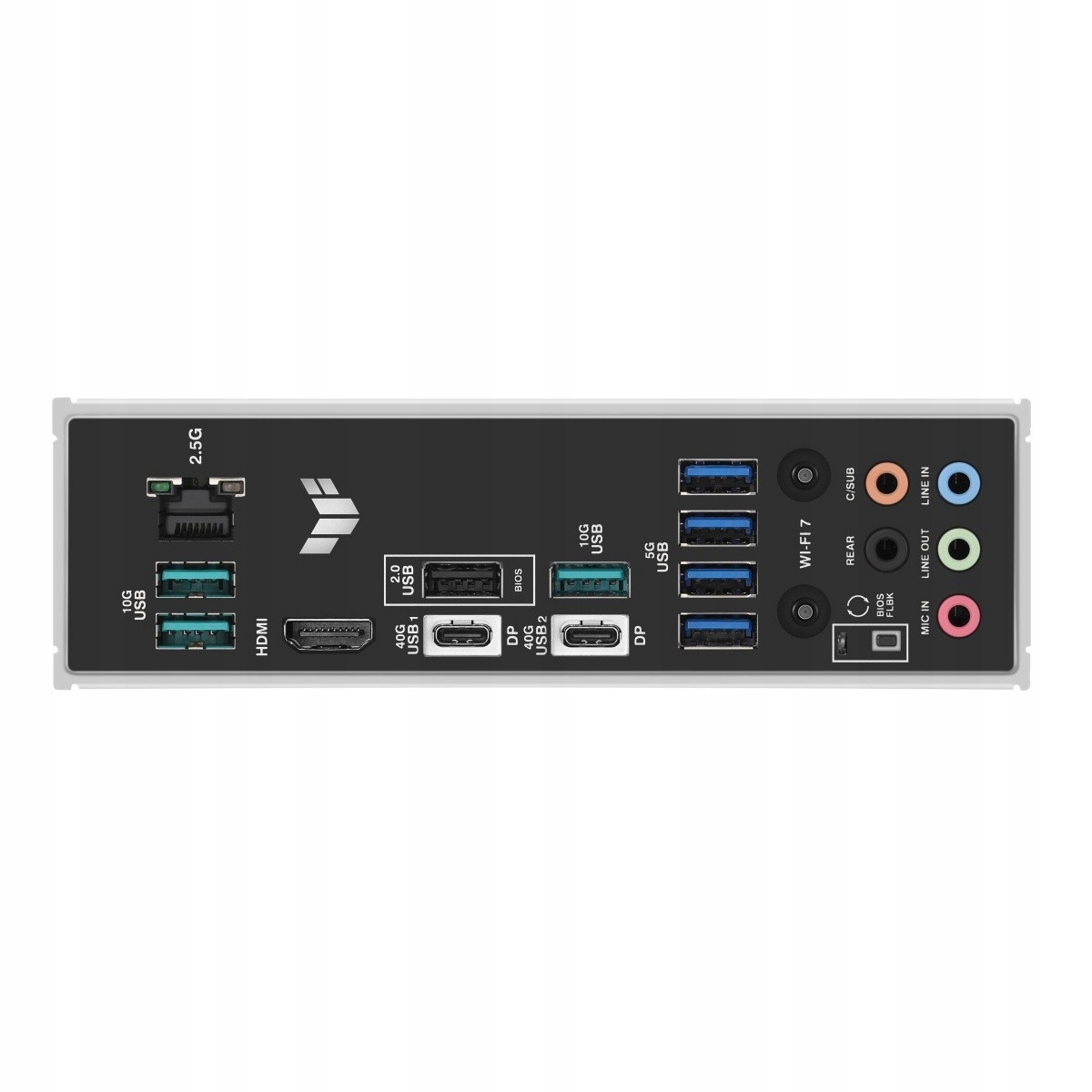

• Porty USB na panelu tylnym: 1x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 2x USB4 Type-C
• Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
• Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
• Port Bluetooth: Bluetooth V5.4
• Uwagi do WiFi / BT:
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
• Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full
• functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
• For Windows 10, please note that no driver is available , please refer to
• the Wi-Fi chipset vendor’s website for details
• Wi-Fi 6GHz frequency band and bandwidth regulatory may vary
• The Bluetooth version may vary, please refer to the Wi-Fi module
• manufacturer’s website for the latest specifications

Techniczne

• Gniazdo procesora: Socket AM5
• Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
• Uwagi do procesora: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Format płyty: ATX
• Chipset płyty głównej: AMD X870

Złącza

• Zintegrowany kontroler SATA: Chipset+CPU: 2x SATA III 6Gb/s + 4x M.2
• Uwagi do kontrolera SATA:
• AMD Ryzen 9000 & 7000 Series Desktop Processors:
• – M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• – M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
• AMD Ryzen 8000 Series Desktop Processors:
• – M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• – M.2_2 slot not support
• AMD X870 Chipset:
• – M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• – M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• – 2 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and
• SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series
• The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run
• to x8 mode when M.2_2 runs
• The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be
• disabled when M.2_4 runs
• Złącza PCI Express x16: 2
• Uwagi do złącz PCI:
• AMD Ryzen 9000 & 7000 Series Desktop Processors:
• – 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 Series Desktop Processors:
• – 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD X870 Chipset:
• – 1 x PCIe 4.0 x16 slot (supports x4 mode)
• Please check the PCIe bifurcation table on the support site
• The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs
• The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs
• Port PS/2: Brak
• Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM
• Port równoległy (LPT): Brak
• Inne porty i gniazda:
• 4-pin CPU Fan header
• 4-pin CPU OPT Fan header
• 4-pin AIO Pump header
• W_PUMP+ header
• 3x Addressable Gen 2 header
• Clear CMOS header
• Chassis intrusion header
• 10-1 pin System Panel header
• Thermal Sensor header
• Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)

Fizyczne

• Wymiary [S x W] (mm): 305 x 244

BIOS

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE

Pozostałe parametry

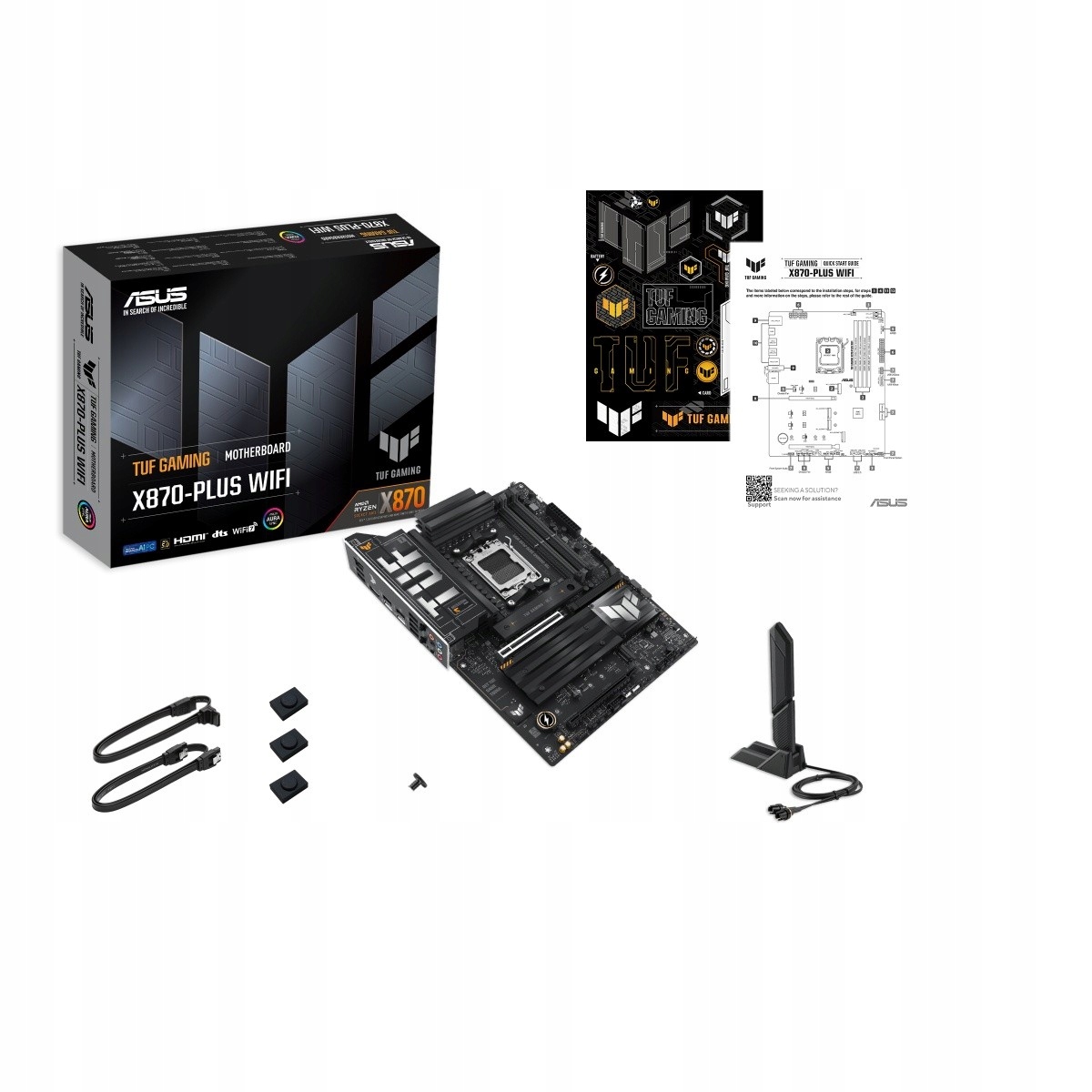

• Wyposażenie dodatkowe:
• 2x SATA 6Gb/s cables

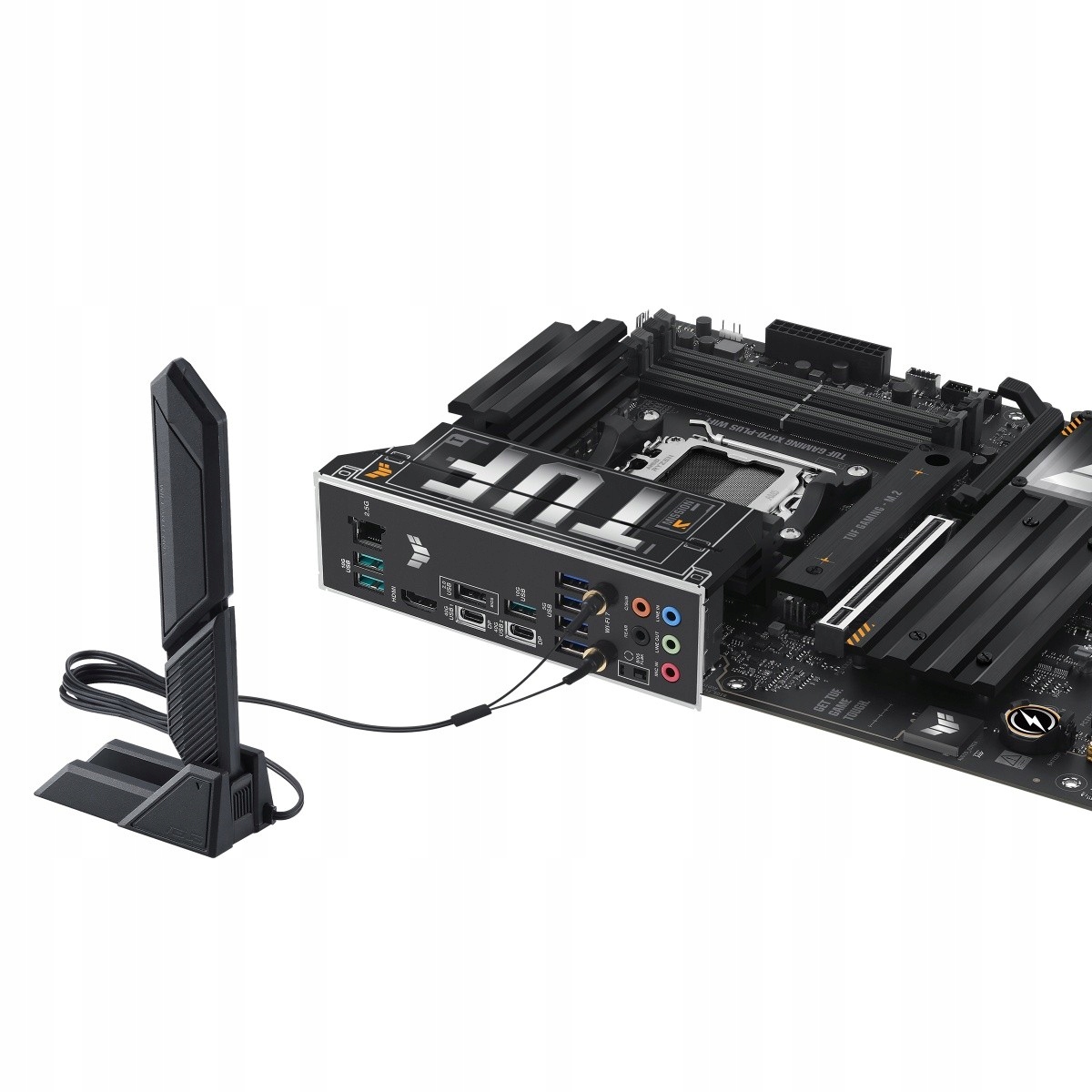

• 1x ASUS WiFi Q-Antenna
• 2x M.2 rubber packages
• 1x Screw package for M.2 SSD
• 1x TUF GAMING sticker
• 1x Quick start guide
• Informacje dodatkowe: Operating System: Wndows 11
